Workspaces as code (WAC) allows you to define and create new environments using workspace templates.
Workspace templates are written as YAML and have a .yaml or .yml extension.

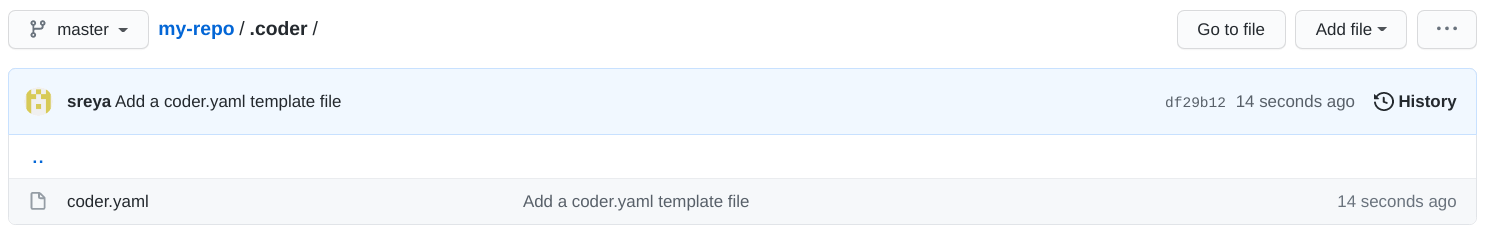

Coder looks for your workspace template at the following path:
<repository-root>/.coder/coder.yaml
Workspace template sample
The following is a sample workspace template that makes use of all available fields. Depending on your use case, you may not need all of the options available.
For detailed information on the fields available, see the subsequent sections of this article
version: 0.1
workspace:
type: kubernetes
spec:
image: index.docker.io/ubuntu:18.04
container-based-vm: true
cpu: 4
memory: 16
disk: 128
gpuCount: 1
labels:
com.coder.custom.hello: "hello"
com.coder.custom.world: "world"
configure:
start:
- name: "install curl"
command: |
apt update
apt install -y curl
- name: "install Go binary"
command: "go install"
directory: /home/coder/go/src/github.com/my-project
shell: "bash"
env:
GOPATH: /home/coder/go
Workspace template fields
version
The version number of the config file being used. The current version is 0.1.
workspace
Required. The section containing all configuration information related to the environment.
workspace.type
Required. Determines the type of workspace to be created. Currently, the
only accepted value is kubernetes.
workspace.spec
Required. This section contains configuration information specific to the
workspace.type.
workspace.spec.image
Required. The image to use for the environment. The image should include the
registry and (optionally) the tag, i.e. docker.io/ubuntu:18.04. If you omit
the tag, Coder uses the default value of latest.
You must have imported the image into Coder, otherwise the environment will fail to build.
workspace.spec.labels
The Kubernetes labels to be added to the environment pod.
workspace:
labels:
com.coder.custom.hello: hello
com.coder.custom.world: world
workspace.spec.gpucount
The number of GPUs to allocate to the environment.
workspace.spec.container-based-vm
Determines whether the environment should be created as a
container-based virtual machine (CVM). Default is false.
workspace.spec.cpu
Required. The number of cores to allocate to the environment.
workspace.spec.memory
Required. The amount of memory (in GB) to allocate to the environment.
workspace.spec.disk
Required. The amount of disk space (in GB) to allocate to the environment.
workspace.configure
This section lists the commands that run within the environment after Coder builds the environment. See Configure for more information.
workspace.configure.start
The list of commands to run when Coder starts an environment.
workspace.configure.start[*].command
Required. Runs the provided command within the environment (Coder supports the use of both single-line and multi-line commands).
-
Single-line command:
- name: Install curl command: apt install -y curl -
Multi-line command:
- name: Update and install curl command: | apt update apt install -y curl
workspace.configure.start[*].name
The name of the command being run.
workspace.configure.start[*].shell
The shell Coder should use to run the command.
start:
- name: First step
shell: /bin/bash
workspace.configure.start[*].directory
The working directory from which Coder should run the command.
start:
- name: First step
directory: /home/coder
workspace.configure.start[*].env
The map of environment variables to set for the command.
start:
- name: First step
env:
HOME: /home/coder
GOPATH: /home/coder/go
