External Auth

On this page

Coder integrates with Git and OpenID Connect to automate away the need for developers to authenticate with external services within their workspace.

Git Providers

When developers use git inside their workspace, they are prompted to authenticate. After that, Coder will store and refresh tokens for future operations.

Configuration

To add an external authentication provider, you'll need to create an OAuth application. The following providers are supported:

Example callback URL: https://coder.example.com/external-auth/primary-github/callback. Use an arbitrary ID for your provider (e.g. primary-github).

Set the following environment variables to configure the Coder server:

CODER_EXTERNAL_AUTH_0_ID="primary-github"
CODER_EXTERNAL_AUTH_0_TYPE=github|gitlab|azure-devops|bitbucket-cloud|bitbucket-server|<name of service e.g. jfrog>
CODER_EXTERNAL_AUTH_0_CLIENT_ID=xxxxxx
CODER_EXTERNAL_AUTH_0_CLIENT_SECRET=xxxxxxx

# Optionally, configure a custom display name and icon
CODER_EXTERNAL_AUTH_0_DISPLAY_NAME="Google Calendar"
CODER_EXTERNAL_AUTH_0_DISPLAY_ICON="https://mycustomicon.com/google.svg"

GitHub

Create a GitHub App to enable fine-grained access to specific repositories, or a subset of permissions for security.

Adjust the GitHub App permissions. You can use more or less permissions than are listed here, this is merely a suggestion that allows users to clone repositories:

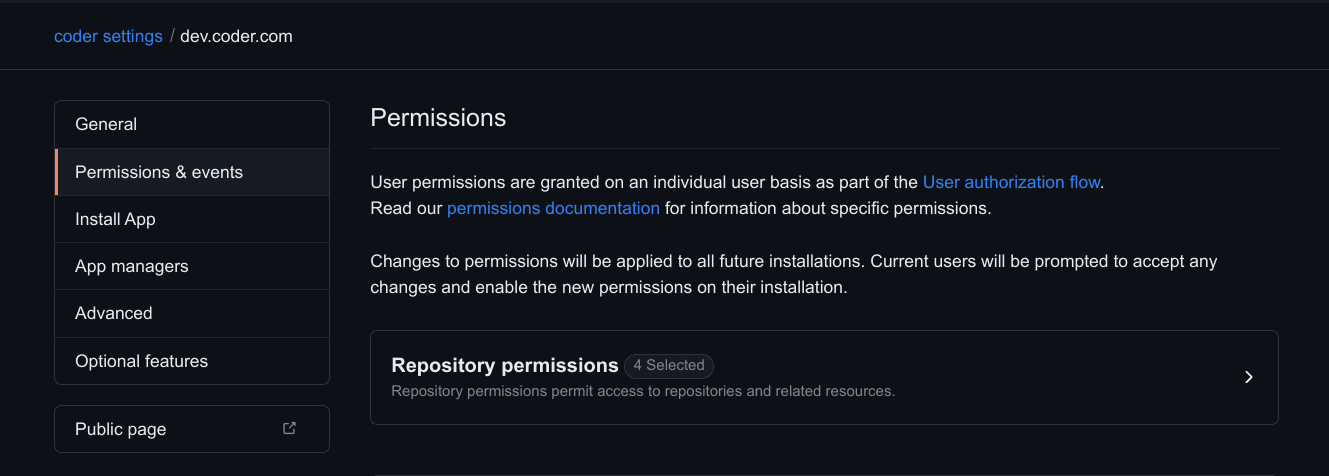

Adjust GitHub App Permissions

Name	Permission	Description
Contents	Read & Write	Grants access to code and commit statuses.
Pull requests	Read & Write	Grants access to create and update pull requests.
Workflows	Read & Write	Grants access to update files in `.github/workflows/`.
Metadata	Read-only	Grants access to metadata written by GitHub Apps.

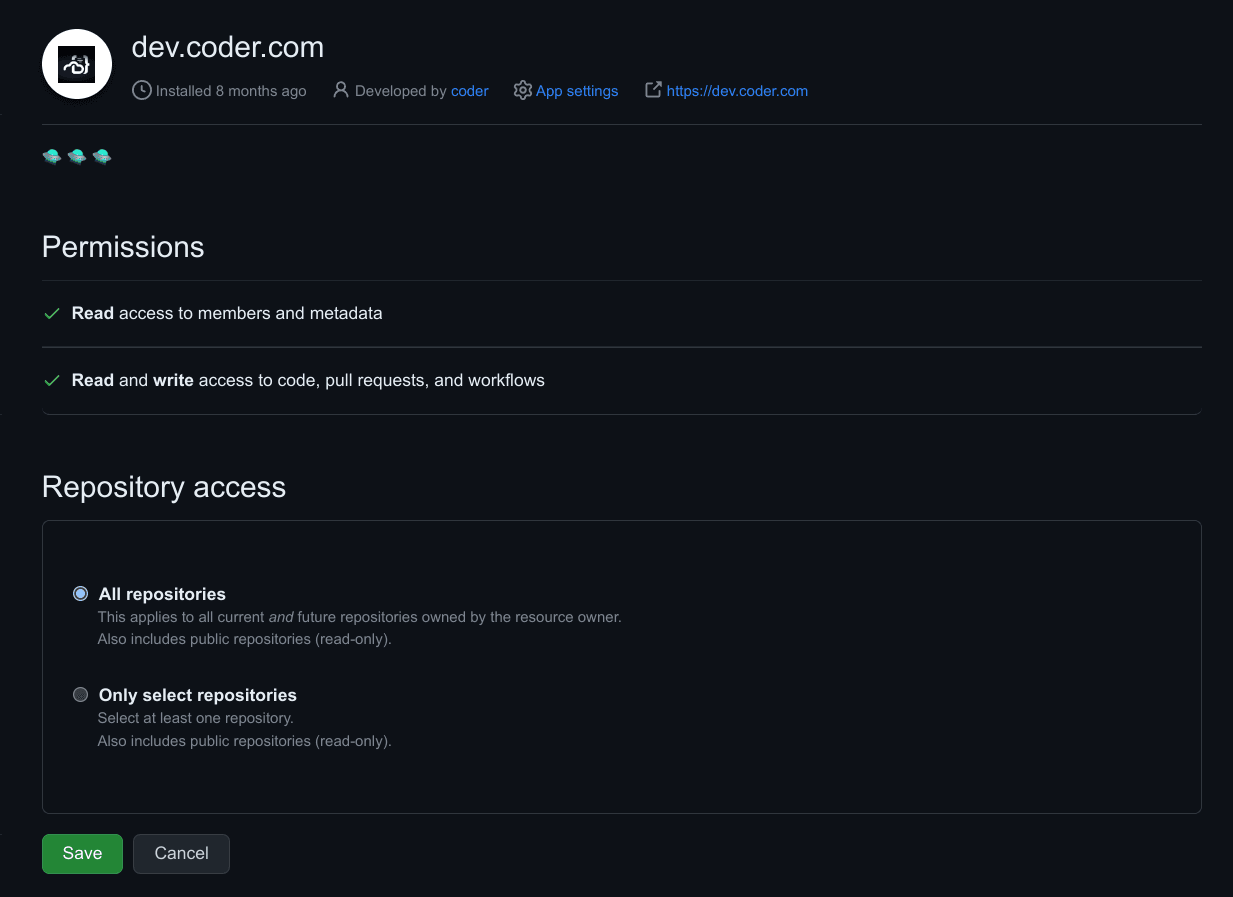

Install the App for your organization. You may select a subset of repositories to grant access to.

GitHub Enterprise

GitHub Enterprise requires the following environment variables:

CODER_EXTERNAL_AUTH_0_ID="primary-github"
CODER_EXTERNAL_AUTH_0_TYPE=github-enterprise
CODER_EXTERNAL_AUTH_0_CLIENT_ID=xxxxxx
CODER_EXTERNAL_AUTH_0_CLIENT_SECRET=xxxxxxx
CODER_EXTERNAL_AUTH_0_VALIDATE_URL="https://github.example.com/api/v3/user"
CODER_EXTERNAL_AUTH_0_AUTH_URL="https://github.example.com/login/oauth/authorize"
CODER_EXTERNAL_AUTH_0_TOKEN_URL="https://github.example.com/login/oauth/access_token"

Bitbucket Server

Bitbucket Server requires the following environment variables:

CODER_EXTERNAL_AUTH_0_TYPE="bitbucket-server"
CODER_EXTERNAL_AUTH_0_ID=bitbucket
CODER_EXTERNAL_AUTH_0_CLIENT_ID=xxx
CODER_EXTERNAL_AUTH_0_CLIENT_SECRET=xxx
CODER_EXTERNAL_AUTH_0_AUTH_URL=https://bitbucket.domain.com/rest/oauth2/latest/authorize

Azure DevOps

Azure DevOps requires the following environment variables:

CODER_EXTERNAL_AUTH_0_ID="primary-azure-devops"
CODER_EXTERNAL_AUTH_0_TYPE=azure-devops
CODER_EXTERNAL_AUTH_0_CLIENT_ID=xxxxxx
# Ensure this value is your "Client Secret", not "App Secret"
CODER_EXTERNAL_AUTH_0_CLIENT_SECRET=xxxxxxx
CODER_EXTERNAL_AUTH_0_AUTH_URL="https://app.vssps.visualstudio.com/oauth2/authorize"
CODER_EXTERNAL_AUTH_0_TOKEN_URL="https://app.vssps.visualstudio.com/oauth2/token"

Self-managed git providers

Custom authentication and token URLs should be used for self-managed Git provider deployments.

CODER_EXTERNAL_AUTH_0_AUTH_URL="https://github.example.com/oauth/authorize"
CODER_EXTERNAL_AUTH_0_TOKEN_URL="https://github.example.com/oauth/token"
CODER_EXTERNAL_AUTH_0_VALIDATE_URL="https://your-domain.com/oauth/token/info"
CODER_EXTERNAL_AUTH_0_REGEX=github\.company\.org

Note: The REGEX variable must be set if using a custom git domain.

Custom scopes

Optionally, you can request custom scopes:

CODER_EXTERNAL_AUTH_0_SCOPES="repo:read repo:write write:gpg_key"

Multiple External Providers
Enterprise

Multiple providers are an Enterprise feature. Learn more. Below is an example configuration with multiple providers.

# Provider 1) github.com
CODER_EXTERNAL_AUTH_0_ID=primary-github
CODER_EXTERNAL_AUTH_0_TYPE=github
CODER_EXTERNAL_AUTH_0_CLIENT_ID=xxxxxx
CODER_EXTERNAL_AUTH_0_CLIENT_SECRET=xxxxxxx
CODER_EXTERNAL_AUTH_0_REGEX=github.com/orgname

# Provider 2) github.example.com
CODER_EXTERNAL_AUTH_1_ID=secondary-github
CODER_EXTERNAL_AUTH_1_TYPE=github
CODER_EXTERNAL_AUTH_1_CLIENT_ID=xxxxxx
CODER_EXTERNAL_AUTH_1_CLIENT_SECRET=xxxxxxx
CODER_EXTERNAL_AUTH_1_REGEX=github.example.com
CODER_EXTERNAL_AUTH_1_AUTH_URL="https://github.example.com/login/oauth/authorize"
CODER_EXTERNAL_AUTH_1_TOKEN_URL="https://github.example.com/login/oauth/access_token"
CODER_EXTERNAL_AUTH_1_VALIDATE_URL="https://github.example.com/api/v3/user"

To support regex matching for paths (e.g. github.com/orgname), you'll need to add this to the Coder agent startup script:

git config --global credential.useHttpPath true

Require git authentication in templates

If your template requires git authentication (e.g. running git clone in the startup_script), you can require users authenticate via git prior to creating a workspace:

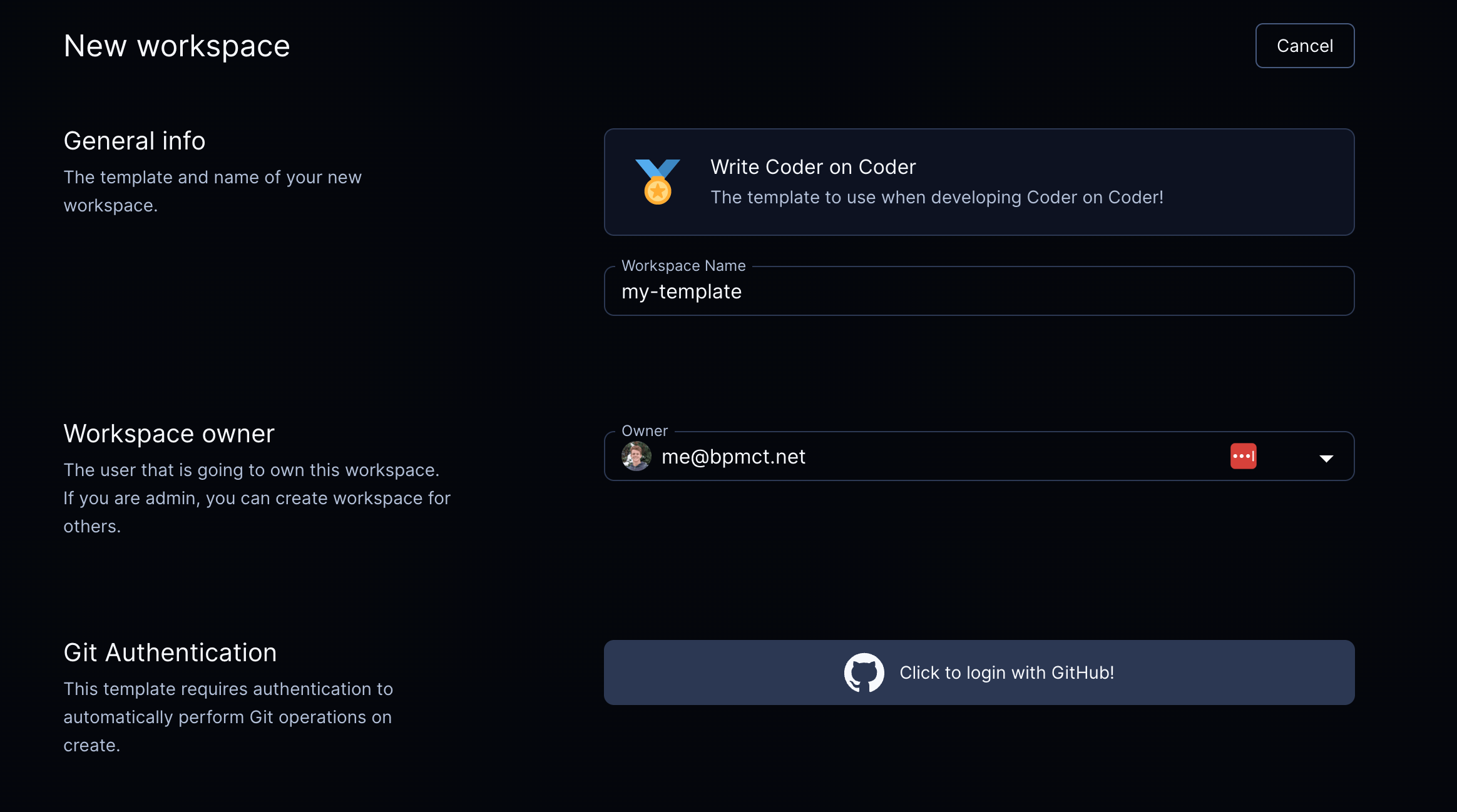

Git authentication in template

The following example will require users authenticate via GitHub and auto-clone a repo into the ~/coder directory.

data "coder_external_auth" "github" {
  # Matches the ID of the external auth provider in Coder.
  id = "github"
}

resource "coder_agent" "dev" {
  os   = "linux"
  arch = "amd64"
  dir  = "~/coder"
  env = {
    GITHUB_TOKEN : data.coder_external_auth.github.access_token
  }
  startup_script = <<EOF
if [ ! -d ~/coder ]; then
    git clone https://github.com/coder/coder
fi
EOF
}

See the Terraform provider documentation for all available options.
