Coder is deployed onto Kubernetes clusters, and we recommend the following resource allocation minimums to ensure quality performance.

Compute

For the Coder control plane (which consists of the coderd pod and any additional replicas) allocate at least 2 CPU cores, 4 GB of RAM, and 20 GB of storage.

In addition to sizing the control plane node(s), you can configure the coderd pod's resource requests/limits and number of replicas in the Helm chart. The current defaults for both CPU and memory are the following:

resources:
  requests:
    cpu: "250m"
    memory: "512Mi"
  limits:
    cpu: "250m"
    memory: "512Mi"

By default, Coder is a single-replica deployment. For production systems, consider using at least three replicas to provide failover and load balancing capabilities.

If you expect roughly ten or more concurrent users, we recommend increasing these figures to improve platform performance (we also recommend regular performance testing in a staging environment).

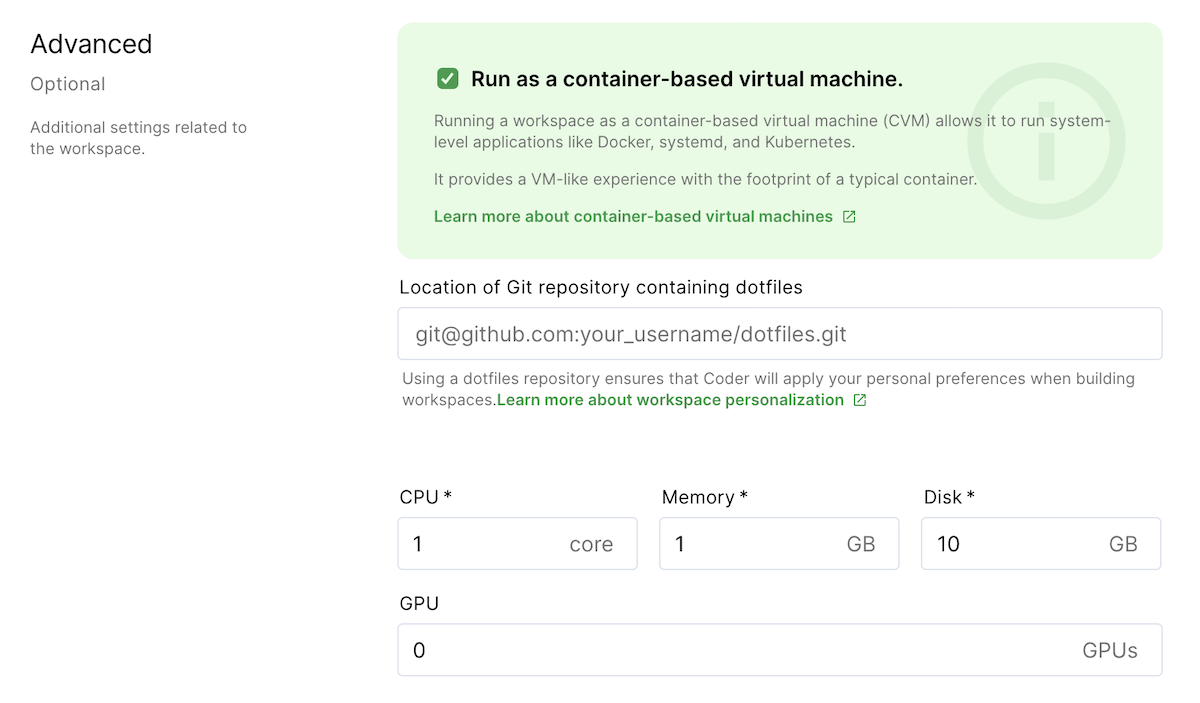

For each active developer using Coder, allocate additional resources. The specific amount required per developer varies, though we recommend starting with 4 CPUs and 16 GB of RAM, then iterating as needed. Developers are free to request the resource allocation that fits their usage:

We also recommend monitoring your usage to determine whether you should change your resource allocation. Accepting a utilization of RAM of around 50% and CPU of around 70% is a good way to balance performance with cost.

Throughput

We recommend the following throughput:

• Read: 3000 IOPS at 50 MB/s
• Write: 3000 IOPS at 50 MB/s

Enabled extensions

You must enable the following extensions on your K8 cluster (check whether you have these extensions enabled by running kubectl get apiservices):

• apps/v1
• rbac.authorization.k8s.io/v1
• metrics.k8s.io
• storage.k8s.io/v1
• networking.k8s.io/v1
• extensions/v1beta1

Browsers

Use an up-to-date browser to ensure that you can use all of Coder's features. We currently require the following versions or newer:

• Apple Safari 12.1
• Google Chrome 66
• Mozilla Firefox 57
• Microsoft Edge 79

If you're using Remote IDEs, allow pop-ups; Coder launches the Remote IDE in a pop-up window.

Storage

Coder requires the use of a persistent volume in your Kubernetes cluster to store workspaces data. More specifically, the persistent volume claim (PVC) requires the block storage type (the PVC is created when you create the workspace to mount the requested block storage).

Files stored in the /home directory of a workspace are persisted in the PVC. All files that live outside of the /home directory are written to the node's disk storage (the node's disk storage is shared across all workspaces on that node). If there's insufficient node disk storage, Coder cannot create new workspaces (and, in some cases, workspaces may be evicted from the node). To avoid this, we recommend creating nodes with a disk size of at least 100 GiB.

Additionally, you must enable dynamic volume provisioning so that Coder can mount the PVC to the workspace (if you're using a custom StorageClass, be sure that it supports DVP. Otherwise, Coder cannot provision workspaces).

Database

Coder requires a PostgreSQL database to store metadata related to your deployment.

By default, Coder deploys a TimescaleDB internal to your Kubernetes cluster. This is included for evaluation purposes only, and it is not backed up. For production deployments, we recommend using a PostgreSQL database external to your cluster. You can connect Coder to your external database by modifying the Helm chart with information regarding your PostgreSQL instance.

Coder requires, at minimum, PostgreSQL 11 with the contrib package installed.

Network Policies

Coder uses Kubernetes NetworkPolicies to enforce network segmentation and tenant isolation within your cluster.

Coder's network isolation policy blocks all ingress traffic to workspaces except traffic from the control plane (this ensures that you can audit all traffic). However, the control plane does not specify egress rules; by default, it allows outbound traffic. However, you can still enforce a more specific network policy.

Container network interface (CNI) plugins implement network segmentation and tenant isolation in the Kubernetes cluster. They enforce network boundaries between pods, preventing users from accessing other workspaces.

If your container network interface (CNI) plugin does not support NetworkPolicy enforcement, traffic between workspaces, and other containerized workloads within the same cluster will be permitted to communicate without restriction. Consider testing your container networking after installing Coder to ensure that the behavior is as expected.

If you're not sure which CNI plugin to use, we suggest Calico.

Licenses

The use of Coder deployments requires a license that's emailed to you.

Restrictions

Deployments using the free trial of Coder:

• Must be able to reach and use an outbound internet connection (at minimum, your deployment must be able to access licensor.coder.com)
• Cannot be deployed in an air-gapped network
• Must use Coder v1.10.0 or later

The above requirements do not apply to potential customers engaged in our evaluation program.
