Docker

This Workspace Provider type is no longer supported in Coder v1. Please use Coder v2 to use a remote VM as a workspace provisioner.

This article walks you through the process of deploying a workspace provider to a remote VM instance using Docker.

Prerequisites

• You must have a provisioned VM with the Docker Engine installed and running. The Docker Engine must be at least version 20.10.

• Coder must be able to access the VM over an SSH connection.

• The Coder deployment must be accessible from the containers deployed inside the VM.

1. Create a new SSH key

Coder uses SSH to connect to the remote VM and communicate with the Docker Engine.

We recommend that you create a new SSH key for this purpose and do not reuse this key. Furthermore, ensure that you save this key, since you'll need it to edit your workspace provider in the future.

❗ Coder does not currently support password-protected SSH keys; the SSH key must be unencrypted.

To generate your SSH key, run:

ssh-keygen -t ed25519 -C remote-c4d -f $HOME/.ssh/remote_c4d -N ""

2. Add the SSH key to the remote VM

Add your SSH key to the remote VM's authorized_keys file; this will allow Coder to connect via SSH using the new remote_c4d key:

# Replace '[email protected]' with your VM's user and host/ip.
ssh-copy-id -f -i $HOME/.ssh/remote_c4d.pub [email protected]

3. Verify the SSH key

Verify that you can use the key to connect via SSH to your remote VM:

# Replace '[email protected]' with your VM's user and host/ip.
ssh [email protected] -o IdentitiesOnly=yes -i $HOME/.ssh/remote_c4d 'echo All good!'

4. Enable the Docker providers feature flag

In your Coder for Docker deployment, ensure that you've enabled the Remote Docker Providers feature flag.

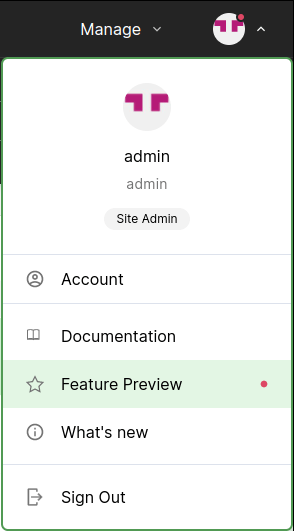

1. Log in to Coder, and go to Account > Feature Preview



2. Click to enable Remote Docker Providers



5. Create the workspace provider

To create your workspace provider, go to Manage > Workspace providers. Click the dropdown in the top-right corner to launch Create Docker Provider

You can now fill out the provider form.

1. Provide a name for your new provider.

2. For the Docker Daemon URL, use unix:///var/run./docker.sock

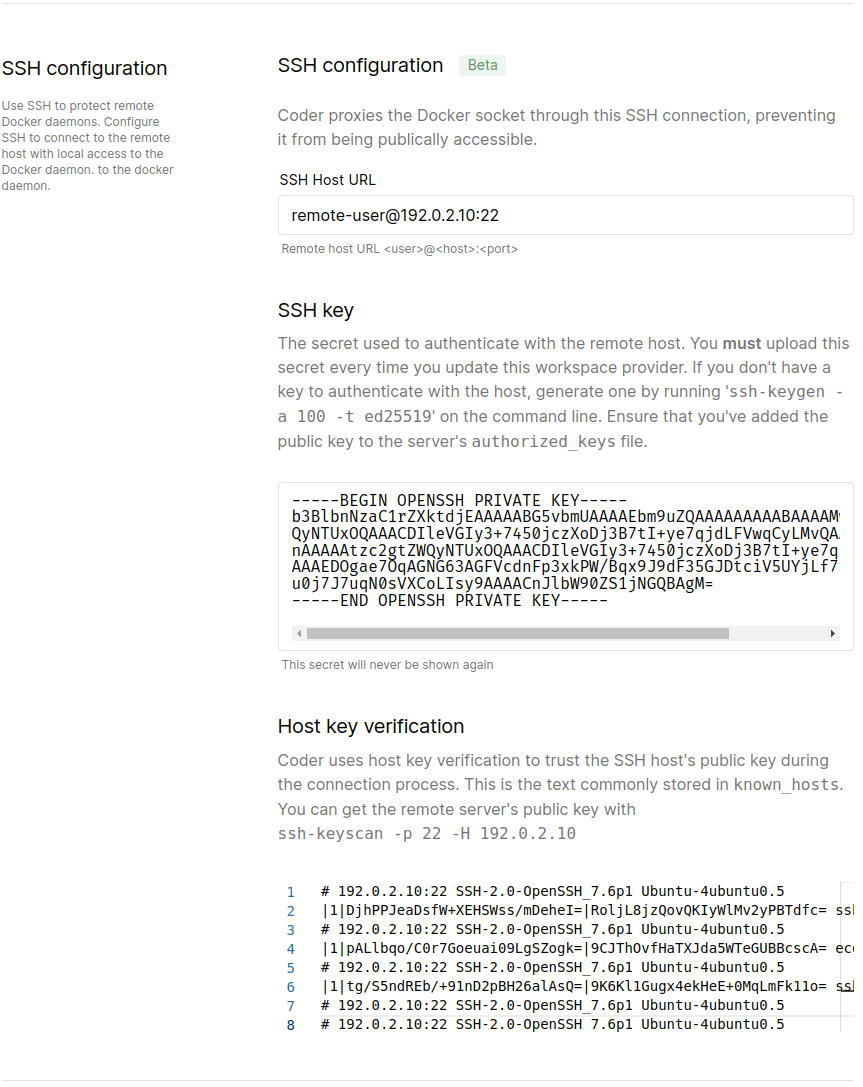

3. Under the SSH configuration section:

   1. Under SSH Host URL, provide the SSH URL for the remote VM, including the port (e.g., [email protected]:22)

   2. Copy over the private key that you created earlier (you can retrieve it with cat $HOME/.ssh/remote_c4d)

   3. Run the keyscan provided for known host verification, and copy over the output:

      # Example:
      ssh-keyscan -p 22 -H 192.0.2.10


   4. Optionally, set the access URL to an IP address or URL that workspaces can use to access coderd. You do not need this override if the site-wide access URL is accessible from the workspace container.
