IDP Sync

On this page

If your OpenID Connect provider supports group claims, you can configure Coder to synchronize groups in your auth provider to groups within Coder. To enable group sync, ensure that the groups claim is being sent by your OpenID provider. You might need to request an additional scope or additional configuration on the OpenID provider side.

If group sync is enabled, the user's groups will be controlled by the OIDC provider. This means manual group additions/removals will be overwritten on the next user login.

There are two ways you can configure group sync:

First, confirm that your OIDC provider is sending claims by logging in with OIDC and visiting the following URL with an Owner account:

https://[coder.example.com]/api/v2/debug/[your-username]/debug-link

You should see a field in either id_token_claims, user_info_claims or both followed by a list of the user's OIDC groups in the response. This is the claim sent by the OIDC provider. See Troubleshooting to debug this.

Depending on the OIDC provider, this claim may be named differently. Common ones include groups, memberOf, and roles.

Next configure the Coder server to read groups from the claim name with the OIDC group field server flag:

# as an environment variable
CODER_OIDC_GROUP_FIELD=groups

# as a flag
--oidc-group-field groups

On login, users will automatically be assigned to groups that have matching names in Coder and removed from groups that the user no longer belongs to.

For cases when an OIDC provider only returns group IDs (Azure AD) or you want to have different group names in Coder than in your OIDC provider, you can configure mapping between the two with the OIDC group mapping server flag.

# as an environment variable
CODER_OIDC_GROUP_MAPPING='{"myOIDCGroupID": "myCoderGroupName"}'

# as a flag
--oidc-group-mapping '{"myOIDCGroupID": "myCoderGroupName"}'

Below is an example mapping in the Coder Helm chart:

coder:
  env:
    - name: CODER_OIDC_GROUP_MAPPING
      value: >
        {"myOIDCGroupID": "myCoderGroupName"}

From the example above, users that belong to the myOIDCGroupID group in your OIDC provider will be added to the myCoderGroupName group in Coder.

Group allowlist

You can limit which groups from your identity provider can log in to Coder with CODER_OIDC_ALLOWED_GROUPS. Users who are not in a matching group will see the following error:

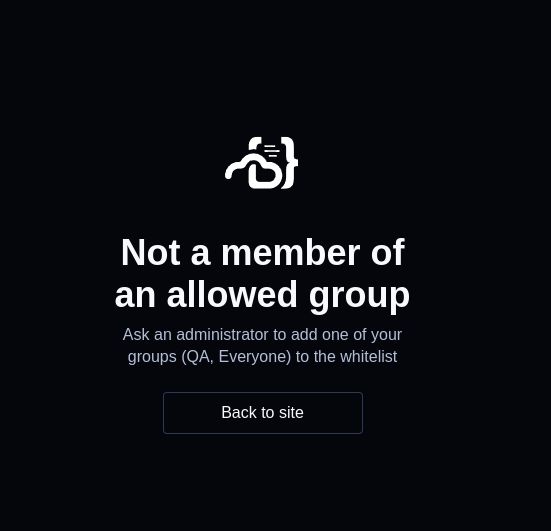

Unauthorized group error

Role sync
Enterprise
Premium

If your OpenID Connect provider supports roles claims, you can configure Coder to synchronize roles in your auth provider to roles within Coder.

There are 2 ways to do role sync. Server Flags assign site wide roles, and runtime org role sync assigns organization roles

First, confirm that your OIDC provider is sending a roles claim by logging in with OIDC and visiting the following URL with an Owner account:

https://[coder.example.com]/api/v2/debug/[your-username]/debug-link

You should see a field in either id_token_claims, user_info_claims or both followed by a list of the user's OIDC roles in the response. This is the claim sent by the OIDC provider. See Troubleshooting to debug this.

Depending on the OIDC provider, this claim may be named differently.

Next configure the Coder server to read groups from the claim name with the OIDC role field server flag:

Set the following in your Coder server configuration.

 # Depending on your identity provider configuration, you may need to explicitly request a "roles" scope
CODER_OIDC_SCOPES=openid,profile,email,roles

# The following fields are required for role sync:
CODER_OIDC_USER_ROLE_FIELD=roles
CODER_OIDC_USER_ROLE_MAPPING='{"TemplateAuthor":["template-admin","user-admin"]}'

One role from your identity provider can be mapped to many roles in Coder (e.g. the example above maps to 2 roles in Coder.)

Organization Sync
Premium

Note: In a future Coder release, this can be managed via the Coder UI instead of server flags.

If your OpenID Connect provider supports groups/role claims, you can configure Coder to synchronize claims in your auth provider to organizations within Coder.

First, confirm that your OIDC provider is sending clainms by logging in with OIDC and visiting the following URL with an Owner account:

https://[coder.example.com]/api/v2/debug/[your-username]/debug-link

Depending on the OIDC provider, this claim may be named differently. Common ones include groups, memberOf, and roles.

Next configure the Coder server to read groups from the claim name with the OIDC organization field server flag:

# as an environment variable
CODER_OIDC_ORGANIZATION_FIELD=groups

Next, fetch the corresponding organization IDs using the following endpoint:

https://[coder.example.com]/api/v2/organizations

Set the following in your Coder server configuration.

CODER_OIDC_ORGANIZATION_MAPPING='{"data-scientists":["d8d9daef-e273-49ff-a832-11fe2b2d4ab1", "70be0908-61b5-4fb5-aba4-4dfb3a6c5787"]}'

One claim value from your identity provider can be mapped to many organizations in Coder (e.g. the example above maps to 2 organizations in Coder.)

By default, all users are assigned to the default (first) organization. You can disable that with:

CODER_OIDC_ORGANIZATION_ASSIGN_DEFAULT=false

Troubleshooting group/role/organization sync

Some common issues when enabling group/role sync.

General guidelines

If you are running into issues with group/role sync, is best to view your Coder server logs and enable verbose mode. To reduce noise, you can filter for only logs related to group/role sync:

CODER_VERBOSE=true
CODER_LOG_FILTER=".*userauth.*|.*groups returned.*"

Be sure to restart the server after changing these configuration values. Then, attempt to log in, preferably with a user who has the Owner role.

The logs for a successful group sync look like this (human-readable):

[debu]  coderd.userauth: got oidc claims  request_id=49e86507-6842-4b0b-94d4-f245e62e49f3  source=id_token  claim_fields="[aio aud email exp groups iat idp iss name nbf oid preferred_username rh sub tid uti ver]"  blank=[]

[debu]  coderd.userauth: got oidc claims  request_id=49e86507-6842-4b0b-94d4-f245e62e49f3  source=userinfo  claim_fields="[email family_name given_name name picture sub]"  blank=[]

[debu]  coderd.userauth: got oidc claims  request_id=49e86507-6842-4b0b-94d4-f245e62e49f3  source=merged  claim_fields="[aio aud email exp family_name given_name groups iat idp iss name nbf oid picture preferred_username rh sub tid uti ver]"  blank=[]

[debu]  coderd: groups returned in oidc claims  request_id=49e86507-6842-4b0b-94d4-f245e62e49f3  [email protected]  username=ben  len=3  groups="[c8048e91-f5c3-47e5-9693-834de84034ad 66ad2cc3-a42f-4574-a281-40d1922e5b65 70b48175-107b-4ad8-b405-4d888a1c466f]"

To view the full claim, the Owner role can visit this endpoint on their Coder deployment after logging in:

https://[coder.example.com]/api/v2/debug/[username]/debug-link

User not being assigned / Group does not exist

If you want Coder to create groups that do not exist, you can set the following environment variable. If you enable this, your OIDC provider might be sending over many unnecessary groups. Use filtering options on the OIDC provider to limit the groups sent over to prevent creating excess groups.

# as an environment variable
CODER_OIDC_GROUP_AUTO_CREATE=true

# as a flag
--oidc-group-auto-create=true

A basic regex filtering option on the Coder side is available. This is applied after the group mapping (CODER_OIDC_GROUP_MAPPING), meaning if the group is remapped, the remapped value is tested in the regex. This is useful if you want to filter out groups that do not match a certain pattern. For example, if you want to only allow groups that start with my-group- to be created, you can set the following environment variable.

# as an environment variable
CODER_OIDC_GROUP_REGEX_FILTER="^my-group-.*$"

# as a flag
--oidc-group-regex-filter="^my-group-.*$"

Invalid Scope

If you see an error like the following, you may have an invalid scope.

The application '<oidc_application>' asked for scope 'groups' that doesn't exist on the resource...

This can happen because the identity provider has a different name for the scope. For example, Azure AD uses GroupMember.Read.All instead of groups. You can find the correct scope name in the IDP's documentation. Some IDP's allow configuring the name of this scope.

The solution is to update the value of CODER_OIDC_SCOPES to the correct value for the identity provider.

No `group` claim in the `got oidc claims` log

Steps to troubleshoot.

Ensure the user is a part of a group in the IDP. If the user has 0 groups, no groups claim will be sent.
Check if another claim appears to be the correct claim with a different name. A common name is memberOf instead of groups. If this is present, update CODER_OIDC_GROUP_FIELD=memberOf.
Make sure the number of groups being sent is under the limit of the IDP. Some IDPs will return an error, while others will just omit the groups claim. A common solution is to create a filter on the identity provider that returns less than the limit for your IDP.
- Azure AD limit is 200, and omits groups if exceeded.
- Okta limit is 100, and returns an error if exceeded.

Provider-Specific Guides

Below are some details specific to individual OIDC providers.

Active Directory Federation Services (ADFS)

Note: Tested on ADFS 4.0, Windows Server 2019

In your Federation Server, create a new application group for Coder. Follow the steps as described here.
- Server Application: Note the Client ID.
- Configure Application Credentials: Note the Client Secret.
- Configure Web API: Set the Client ID as the relying party identifier.
- Application Permissions: Allow access to the claims openid, email, profile, and allatclaims.
Visit your ADFS server's /.well-known/openid-configuration URL and note the value for issuer.

Note: This is usually of the form https://adfs.corp/adfs/.well-known/openid-configuration
In Coder's configuration file (or Helm values as appropriate), set the following environment variables or their corresponding CLI arguments:
- CODER_OIDC_ISSUER_URL: the issuer value from the previous step.
- CODER_OIDC_CLIENT_ID: the Client ID from step 1.
- CODER_OIDC_CLIENT_SECRET: the Client Secret from step 1.
- CODER_OIDC_AUTH_URL_PARAMS: set to

  {"resource":"$CLIENT_ID"}

  where $CLIENT_ID is the Client ID from step 1 (see here). This is required for the upstream OIDC provider to return the requested claims.
- CODER_OIDC_IGNORE_USERINFO: Set to true.
Configure Issuance Transform Rules on your federation server to send the following claims:
- preferred_username: You can use e.g. "Display Name" as required.
- email: You can use e.g. the LDAP attribute "E-Mail-Addresses" as required.
- email_verified: Create a custom claim rule:

  => issue(Type = "email_verified", Value = "true")
- (Optional) If using Group Sync, send the required groups in the configured groups claim field. See here for an example.

Keycloak

The access_type parameter has two possible values: "online" and "offline." By default, the value is set to "offline". This means that when a user authenticates using OIDC, the application requests offline access to the user's resources, including the ability to refresh access tokens without requiring the user to reauthenticate.

To enable the offline_access scope, which allows for the refresh token functionality, you need to add it to the list of requested scopes during the authentication flow. Including the offline_access scope in the requested scopes ensures that the user is granted the necessary permissions to obtain refresh tokens.

By combining the {"access_type":"offline"} parameter in the OIDC Auth URL with the offline_access scope, you can achieve the desired behavior of obtaining refresh tokens for offline access to the user's resources.
