Architecture

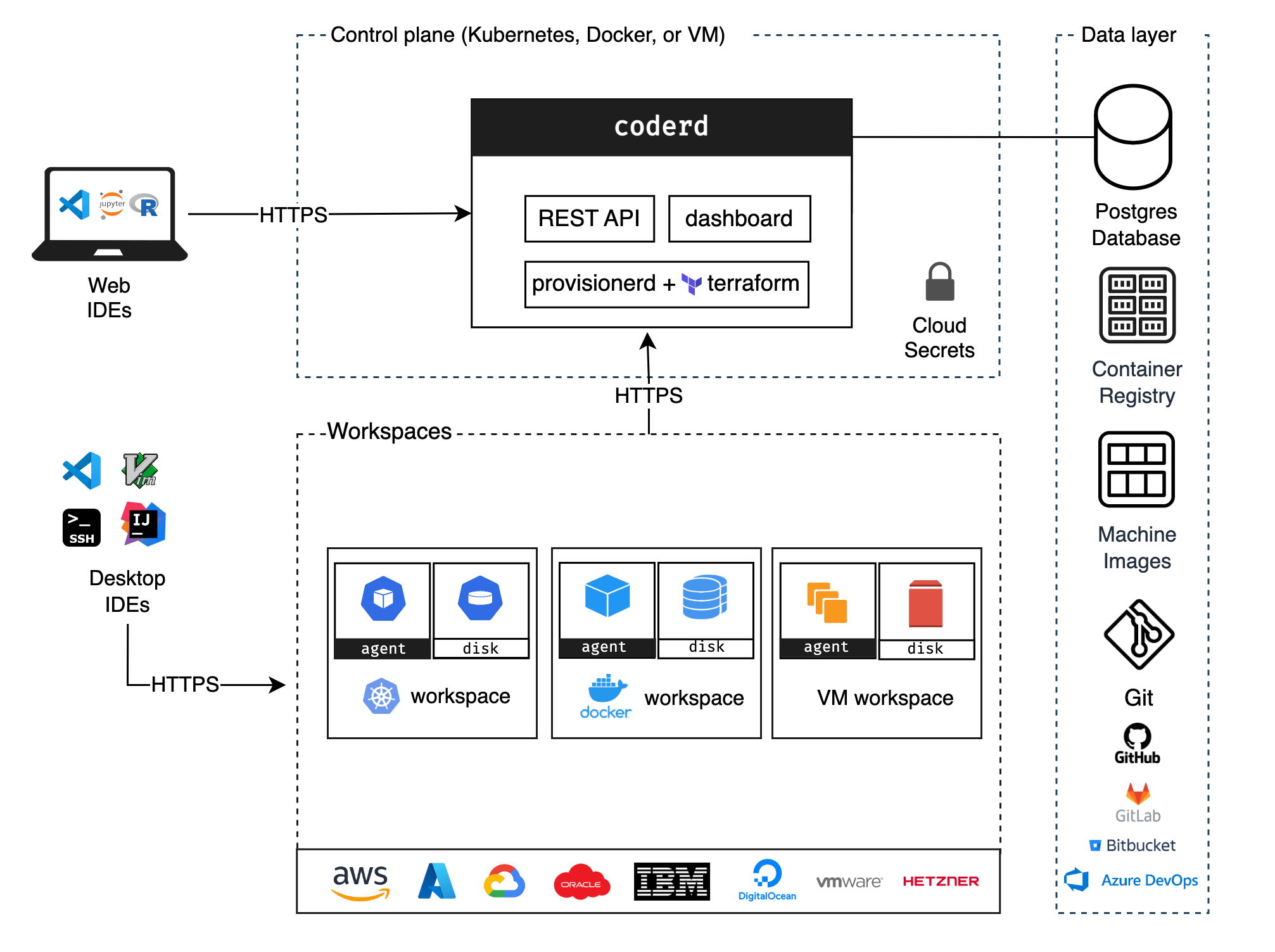

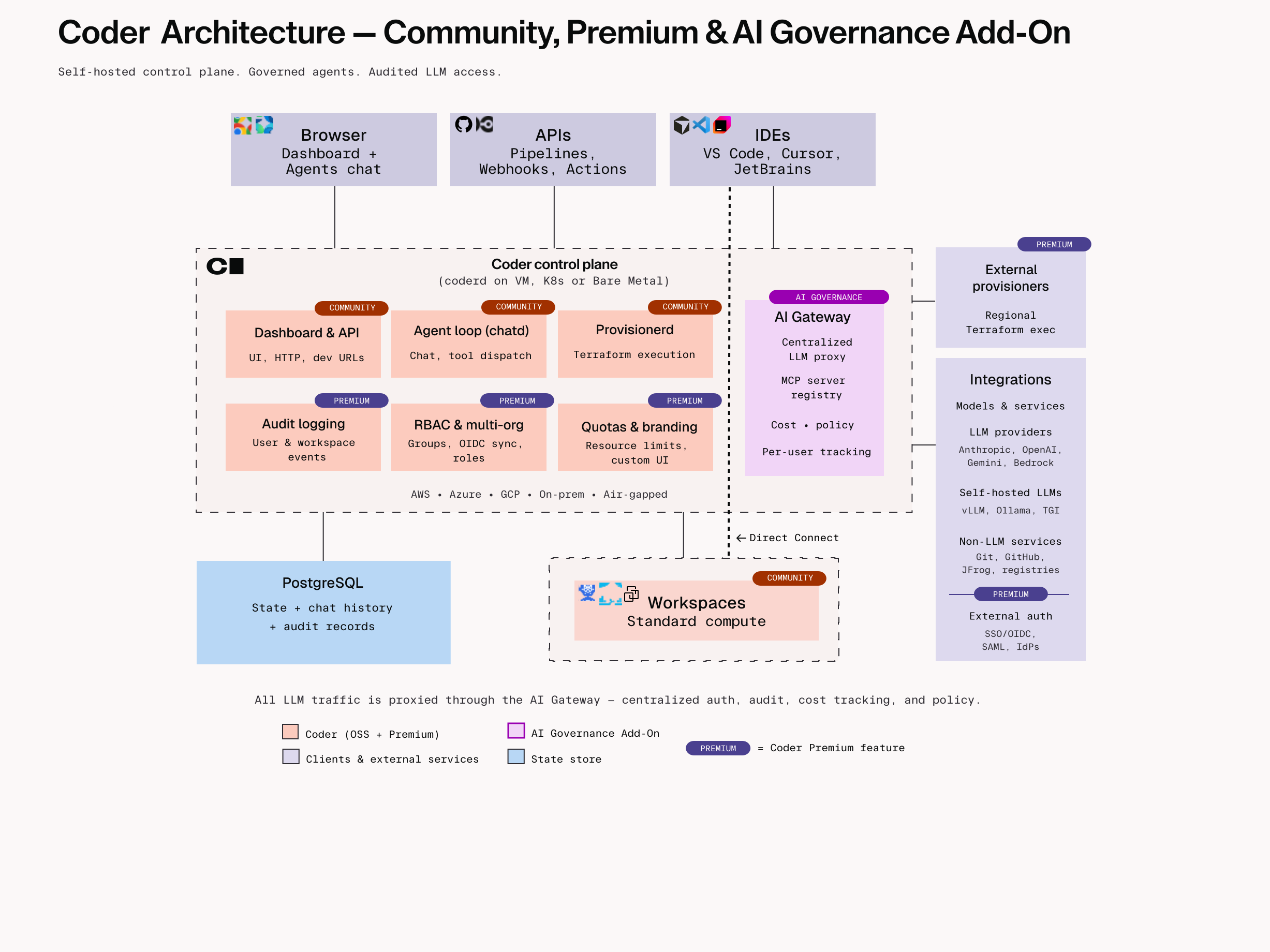

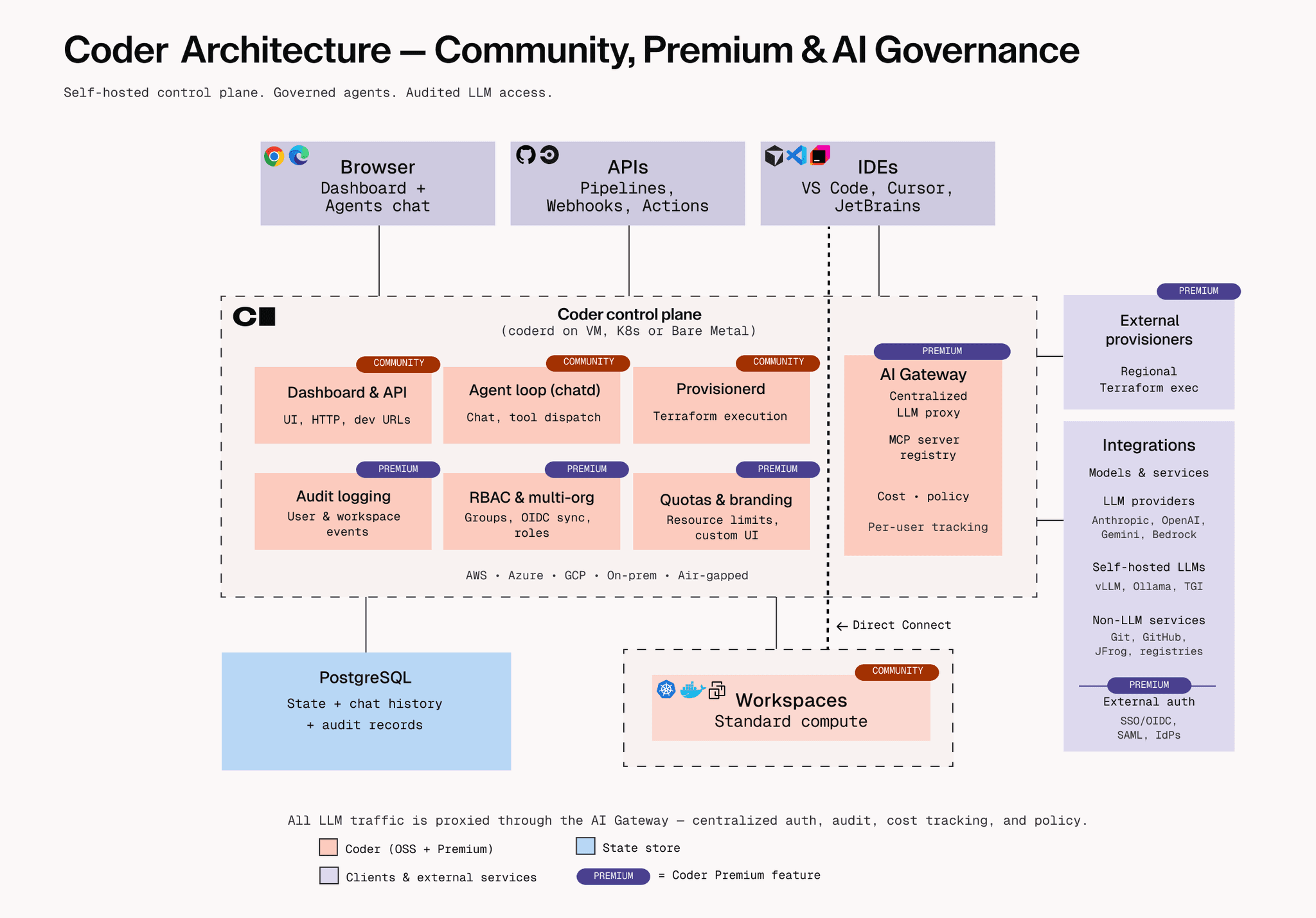

The Coder deployment model is flexible and offers various components that platform administrators can deploy and scale depending on their use case. This page describes possible deployments, challenges, and risks associated with them.

Primary components

coderd

coderd is the service created by running coder server. It is a thin API that connects workspaces, provisioners and users. coderd stores its state in Postgres and is the only service that communicates with Postgres.

It offers:

  • Dashboard (UI)
  • HTTP API
  • Dev URLs (HTTP reverse proxy to workspaces)
  • Workspace Web Applications (e.g for easy access to code-server)
  • Agent registration

provisionerd

provisionerd is the execution context for infrastructure modifying providers. At the moment, the only provider is Terraform (running terraform).

By default, the Coder server runs multiple provisioner daemons. External provisioners can be added for security or scalability purposes.

Workspaces

At the highest level, a workspace is a set of cloud resources. These resources can be VMs, Kubernetes clusters, storage buckets, or whatever else Terraform lets you dream up.

The resources that run the agent are described as computational resources, while those that don't are called peripheral resources.

Each resource may also be persistent or ephemeral depending on whether they're destroyed on workspace stop.

Agents

An agent is the Coder service that runs within a user's remote workspace. It provides a consistent interface for coderd and clients to communicate with workspaces regardless of operating system, architecture, or cloud.

It offers the following services along with much more:

  • SSH
  • Port forwarding
  • Liveness checks
  • startup_script automation

Templates are responsible for creating and running agents within workspaces.

Service Bundling

While coderd and Postgres can be orchestrated independently, our default installation paths bundle them all together into one system service. It's perfectly fine to run a production deployment this way, but there are certain situations that necessitate decomposition:

  • Reducing global client latency (distribute coderd and centralize database)
  • Achieving greater availability and efficiency (horizontally scale individual services)

Data Layer

While coderd runs a bundled version of PostgreSQL, we recommend running an external PostgreSQL 13+ database for production deployments.

A managed PostgreSQL database, with daily backups, is recommended:

  • For AWS: Amazon RDS for PostgreSQL
  • For Azure: Azure Database for PostgreSQL
  • Flexible Server For GCP: Cloud SQL for PostgreSQL

Learn more about database requirements: Database Health

Users will likely need to pull source code and other artifacts from a git provider. The Coder control plane and workspaces will need network connectivity to the git provider.

Artifact Manager (Optional)

Workspaces and templates can pull artifacts from an artifact manager, such as JFrog Artifactory. This can be configured on the infrastructure level, or in some cases within Coder:

Container Registry (Optional)

If you prefer not to pull container images for the control plane (coderd, provisionerd) and workspaces from public container registry (Docker Hub, GitHub Container Registry) you can run your own container registry with Coder.

To shorten the provisioning time, it is recommended to deploy registry mirrors in the same region as the workspace nodes.
